SCCM Configmgr Software update Compliance Report for multiple Software Update groups per collection

Posted on May 28, 2016 by | 41 Comments | 15,626 Views



Long ago ,did blog post on How to get software update compliance for specific update group per collection with drill down report to list the Required/missing ,unknown clients with some additional information like recent hardware inventory, last update scan results ,OS etc .

This report will only work for single software update group per collection ,but in Configuration Manager ,there could Multiple Software update group created as part of Patching process and it would be difficult to know the compliance status for the same collection for multiple update groups and this task become tedious if you run the same report multiple times and write down the results into file.

with the help of Configuration Manager console ,it is possible to see the Compliance % (Required, installed ,Unknown  and %) for the software update group for the deployed collection but if you want to see the same for multiple update groups and get the list of Required Clients etc ,not possible ,Thus you need SSRS Report.

Wouldn’t it be nice to have SSRS Report that list the Software update compliance for multiple update groups per collection ?

This report is lying in my bucket for longer time and finally going out to public.

I have made little changes to the report (nothing major ) with respect to prompts (select multiple update groups) and drill down report changes as well.

This report allow you to select multiple Update groups and single collection as shown below . you need to action on Required (a.k.a Missing) and Unknown status (Client having issues with software update scan ).

It has 3 RDL files 1) Update compliance Status for multiple Groups per collection and 2) Linked report to know what are the client with specific Software update Status (Required ,Unknown) 3) List all missing updates for specific client.

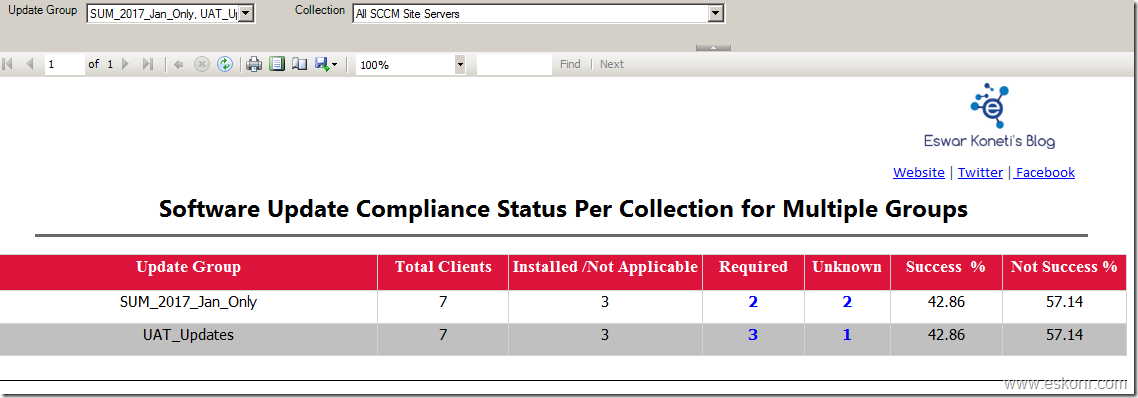

First report looks like below:


Installed—>Specifies that the software update is applicable on the client computer and that the client computer already has the software update installed.

Not Required—>Specifies that the software update is not applicable on the client computer, and therefore, the software update is not required.

Required –>Specifies that the software update is applicable and required on the client computer

Unknown—> Specifies that the site server has not received a state message from the client computer,could be various reasons like scan did not run successfully,scan completed but state message did not sent successfully etc.

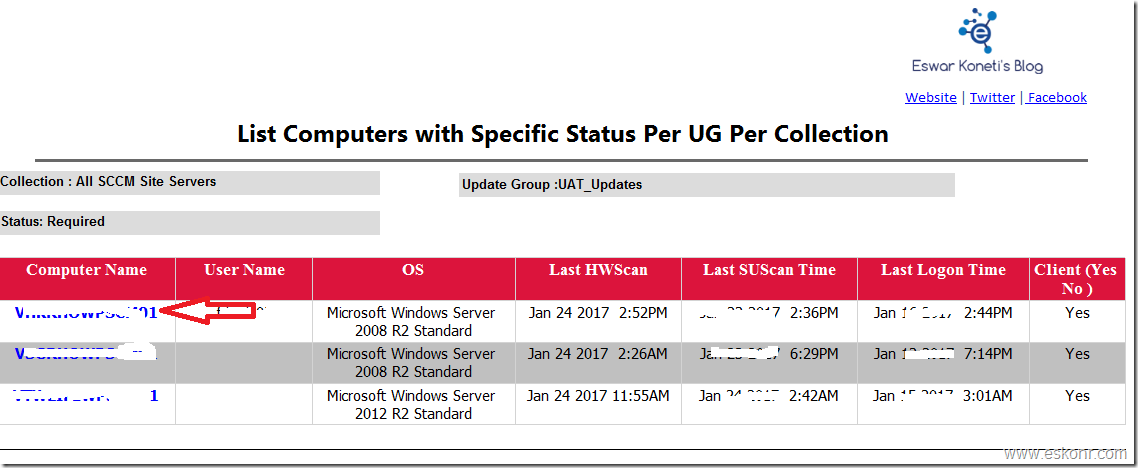

Click on the dark blue colour to see the Required ,Unknown clients for the selected software update group for specific collection.


As you see above snippet, click on the arrow pointed towards computer name to see the list of missing updates for specific client.




Download the Reports from TechNet Gallery ,Upload to your Configmgr SSRS reports ,Change the Data source and Run the Report .

How to troubleshoot software update issues ,refer http://eskonr.com/2015/04/sccm-2012-troubleshoot-client-software-update-issues/

Related Posts

41 Responses to "SCCM Configmgr Software update Compliance Report for multiple Software Update groups per collection"

  2. CHENG SUN · Edit

    Hi, thank you for the report. A question, or request. The 1st report, is compliance status per collection for multiple groups (can be 1 SUG as well). The 2nd report, it shows all the clients in that collection with status Required against the selected SUG. In the 3rd report, it shows all the missing updates on the selected client. Is it possible to show missing updates against the selected SUG in Report 1? That is, if there are 20 updates in SUG1, can Report 3 show how many updates are required but missing on select client, out of the 20 in SUG1?

    Reply
    1. Eswar Koneti · Edit

      Hi,
      For 1 SUG ,you already have default software update reports hence i created this for multiple SUG groups .
      I think for your requirement to see report for 1 SUG ,you can use the default SUG reports.

      thanks,
      Eswar

      Reply
      1. Nacho · Edit

        Hi Eswar, first of all thank you for your great job. I share the point of Cheng Sun, if would be great if i can drill down to see just the updates for the SUGs involved in my first selection in your Report 1. When i share this reports to another IT collegaues they always 'complain' about this. We just need to see the updates that belongs to the multiple SUGs we select in Report 1.

        Thank you very much
        Nacho

        Reply
        1. Eswar Koneti · Edit

          Hi Nacho,
          This is in my pending list and i understand the needs. Due to other priorities in office 365 projects, could not able to manage it.
          I will look at it and keep update the blog post.
          Sorry for the delay.

          Thanks,
          Eswar

          Reply
  3. Stephen Palladino · Edit

    Great Reports they where working fine but now that i have the full amount of users into our new SCCM setup when i run the report against multiple software updates groups and specify our main patching collection around 7000 end points it spins and fails after a long time saying it was cancelled by user. If i run it against one update group against the same 7000 end point collection it will finish it takes about 8 minutes... has anyone else had this issue when pointing to multiple groups and a large collection? Is there a fix?

    Reply
      1. Hoang · Edit

        Hi Eswar,
        Thanks for responding and yes, I do see that link but it give you select the Collection not SUG. I've tried to change data source using SUG SQL but it is not look right. I am not very good in building SQL reporting services.

        Reply
  5. Paul · Edit

    This report is very useful. Just wondering if it could easily be adjusted to show the results of all groups together as a single set of values like an overall compliance type of report?

    Reply
    1. Eswar Koneti · Edit

      You mean all software update groups against specific collection ? If so, yes that can be done but need time to create.Will add to-do list.

      Regards,
      Eswar

      Reply
  6. Rune U · Edit

    Hi Eswar

    Thank you for this report, it's very helpful.

    However I have a problem: When running the report, I choose a Software Update Group and Collection, then click Required to see the lists of clients.
    Then when I click a specific client, it lists all required updates in the SCCM DB, not limited to those in the Software Update Group I selected earlier.

    Is that by design?

    I was expecting it to limit by software update group like this report: http://eskonr.com/2015/12/sccm-configmgr-ssrs-report-get-list-of-missing-updates-for-pc-from-specific-software-update-group/

    Thank you
    Rune

    Reply
    1. Eswar Koneti · Edit

      Hi Rune,
      Nope,that is not by design however linked report needs to be adjusted to take the software update group that you selected as input.
      Need to look into the code to modify the report .These days very busy with O365 project hence delayed.

      Regards,
      Eswar

      Reply
      1. Rune U · Edit

        Thank you. I found a way to link one of your other reports to the one I mentioned and now I have a working solution.
        Let me know if you want a copy 🙂

        Reply
  7. Kaspars · Edit

    Hi
    Why I see strange behavior on the second report and maybe it also influences first one too. I have approved november updes. But I wanted to check how October ones are doing. For example I see that 34 computer missing updates in Update group 10 2017. I click on missing number and see computers. When I click on one of computers I see no october updates missing but allready November (revised date 11-2017).
    How is that? So I cant realy see compliance for previos month.

    Reply
  9. Muzzy · Edit

    Great job Eswar! I wonder if it possible to rebuild this report in a opposite way - aka "Compliance report for Multiple Device Collections per update group"? Thank you in advance for your reply!

    Reply
      1. Thomas · Edit

        Hi Eswar, thanks for the report. Just wondering if the function to query against multiple collection is available? As we need to query multiple software update groups against multiple collection groups.

        Reply
          1. Nick B · Edit

            Hi Eswar - some great work here.............. so may I jump on the bandwaggon ? 🙂 - Im after a similar report, listing each machine in a chosen collection, showing the general compliance (compliant/non-compliance/unknown) status against 4 update groups - (as column headers) - is that possible ? - thank you

            Reply
            1. Eswar Koneti · Edit

              Hi Nick,
              yes that is possible but would take time due to the code involved init. This is interesting report and helps lot of people there.
              I will add this to my to-do list. If you are subscribed for post, you will get notify on this.

              Regards,
              Eswar

  10. Frank · Edit

    Thanks for this, it's just what I needed. Have an issue with the first report in the series "Software Update Compliance Status Per Collection for Multiple Groups". When running it via Report Builder it seems to work fine. The issue I'm having is when I run it via a browser http://sccmserver/reports, the page appears blank after choosing 'update group' & 'collection'

    Reply
    1. Eswar Koneti · Edit

      Hi Frank,
      Strange that ,it works fine in reporting builder but doesnt when running browser. can you try to import the reports again into folder ,change the datasource and run it ?
      I just tried the reports, it works fine for me.

      Regards,
      Eswar

      Reply
  11. lenny · Edit

    Hi Eswar

    Want to start of by saying awesome report and thanks for sharing!

    However i got an issue, when click on the Required or unknown links i receive this following error:
    Reports/2.List Computers with specific status per UG per Collection' cannot be found. (rsItemNotFound)

    Are you able to point me into the right direction to fix this?

    Cheers

    Reply
    1. Eswar Koneti · Edit

      Hi Lenny,
      can you check if you have other 2 reports uploaded into the same folder ? This report contain 3 reports as said in the blog post.

      Regards,
      Eswar

      Reply
  12. sccm_buff · Edit

    Hi Eswar, New Report which gives inventory of your hostname and also the required updates, but the required updates are not referred from SUG selected in first report (from where we start), infact its referring to all required updates for that hostname, Correct me if i am wrong.

    Reply
  13. Ricky Kollberg · Edit

    Hi Eswar love this report "Software Update Compliance Status Per Collection for Multiple Groups" and then click on those who req the sug "List Computers with Specific Status Per UG Per Collection " But is there any way to go a step and se what patches are missing? not only the Update Group :"ADR Patch Tuesday Security And Critical Updates"
    Best Regards
    Ricky

    Reply
    1. Eswar Koneti · Edit

      Hi Ricky,
      I have updated the post with your requirement ,hope you will find it useful. Redownload the files and upload to your SSRS reports folder.

      Regards,
      Eswar

      Reply
  14. Justin Sparks · Edit

    Thanks for all of the great posts! I am needing a report similar to this that shows the enforcement states for a deployment by collection. Is there a way to modify the report "States 1 - Enforcement states for a deployment" to include a collection filter?

    Thanks!

    Reply
    1. Eswar Koneti · Edit

      Hi,
      Nope, you can get only get the enforcement state for the collection that are deployed with software update groups. You cannot get enforcement states for non-deployed collections as they dont send any enforcement states like downloaded updates,failed etc.
      IF you have deployed a software update group to multiple collections and you want to use filter in this report ,you can do so by using the following SQL query:
      Replace the parameters like assignment ID and collection ID .

      select
      DeploymentID=a.Assignment_UniqueID,
      DeploymentName=a.AssignmentName, a.CollectionName,a.CollectionID,
      Available=a.StartTime,
      Deadline=a.EnforcementDeadline,
      LastEnforcementState=sn.StateName,
      NumberOfComputers=sc.StateCount,
      --PComputers=convert(float, sc.StateCount*100.0) / isnull(nullif(@COLLCOUNT, 0), 1),
      DeploymentStateID=sc.StateType*10000 + sc.StateID
      from v_CIAssignment a
      cross apply(select StateType, StateID, StateCount=count(*) from v_AssignmentState_Combined where AssignmentID=a.AssignmentID and StateType in (300,301) group by StateType, StateID) sc
      left join v_StateNames sn on sn.TopicType=sc.StateType and sn.StateID=sc.StateID
      where a.AssignmentName='SOFTWARE UPDATE ASSIGNMENT'
      and a.CollectionID='COLLECTION ID'
      order by sc.StateCount desc, sn.StateName

      Regards,
      Eswar

      Reply
  15. Jose Sisto · Edit

    Very useful Eswar, exactly what I needed to unify SU compliance reports.

    I added some semaphoric color coding to make it more visual for quick inspections. You can include it if you like it.

    On "Software Update Compliance Status Per Collection for Multiple Groups" report on properties of the data row, I changed Fill > Backgroundcolor Expresion by

    =Switch(Fields!Success__.Value < 50,"Tomato", Fields!Success__.Value = 75, "LightGreen")

    and sorted results by Sucess ratio

    Thanks for such excellent report.

    Reply
    1. Eswar Koneti · Edit

      Hi Jose,
      Glad it helped you and thanks for your thought. Yes, you can lot more changes depends on the requirement using this basic report.

      Thanks,
      Eswar

      Reply
  16. Anna Orlove · Edit

    This report SCCM Configmgr Software update Compliance Report for multiple Software Update groups per collection is really close to what my CIO is looking for, except he wants the 'dwell time' between a patch release and it's deployment on the target systems in a collection. How can I get the 'dwell time' i.e., the time between when a software update patch is released and when it's deployed? A thousand thanks in advance!

    Reply
