    How to Install MBAM 2.5 SP1 and integrate with SCCM Configmgr 2012 R2 SP1 – Part 2

    Eswar KonetiBy 3 Mins Read Active Directory 43,536 Views



    In part 1 here ,we have created the AD user accounts,security group and register SPN .In part 2 of this multiple series guide ,we will install windows roles/features ,SQL server 2012 SP1 and configure database,permissions etc on our MBAM server (MBAM01).

    MBAM SQL server Requirements:

    image_thumb[3]

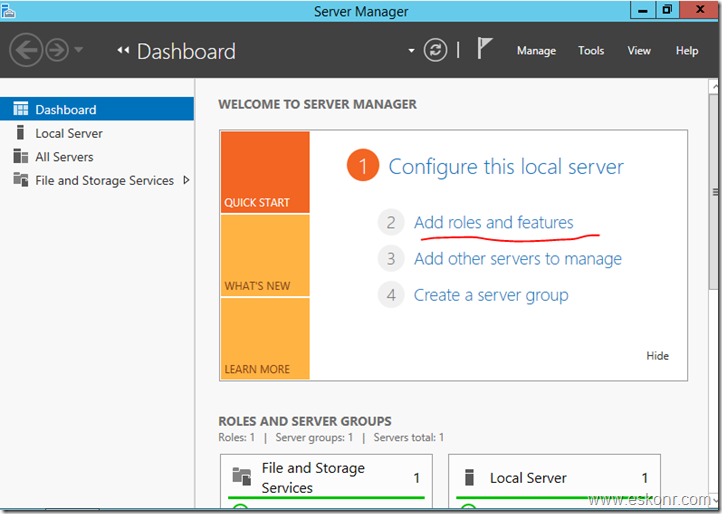

    Login to the MBAM01 server using account that has local administrator rights (I use my SCCM installation account in this case CM_srv, if you have created mbam_admin,use that account) ,open Server Manager ,select add roles and features.


    select the following roles and features:

    Roles:
    • Web Server (IIS) Management Tools (Click IIS Management Scripts and Tools.)
    • Web Server Role Services
      • Common HTTP features
        Static Content
        Default Document
      • Application development
        ASP.NET
        .NET Extensibility
        ISAPI Extensions
        ISAPI Filters
      • Security
        Windows Authentication
        Request Filtering
      • Web Service IIS Management Tools
    Features:
    • .NET Framework 4.5 features
      • WCF Activation
        HTTP Activation
        Non-HTTP Activation
      • TCP Activation
      • Windows Process Activation Service:
        Process Model
        .NET Framework Environment
        Configuration APIs

    During the installation,you must provide sources\sxs folder from your server media else .net framework features will fail to install.

    Next prerequisites is ,download and install  ASP.NET MVC 4  from http://www.asp.net/mvc/mvc4

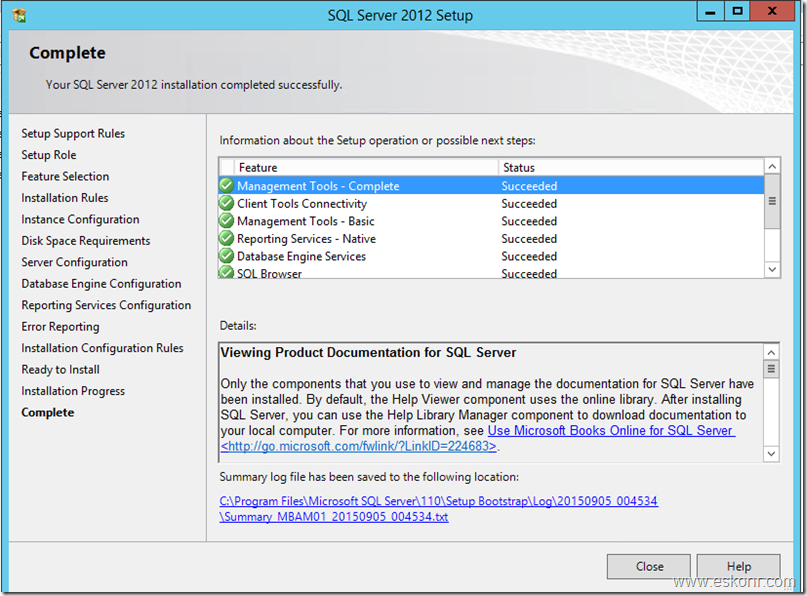

    Reboot the server ,once the server is up, Login to server using CM_SRV Account to install SQL server 2012 SP1 on our MBAM01 server.

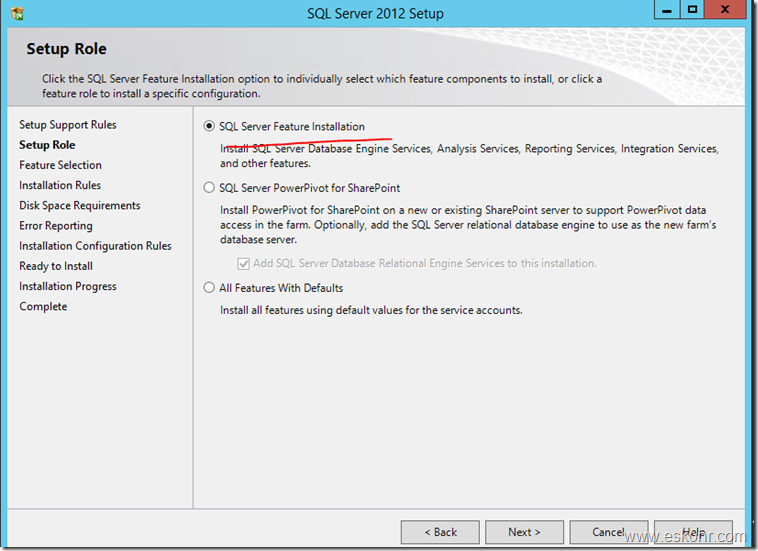

    Setup Role

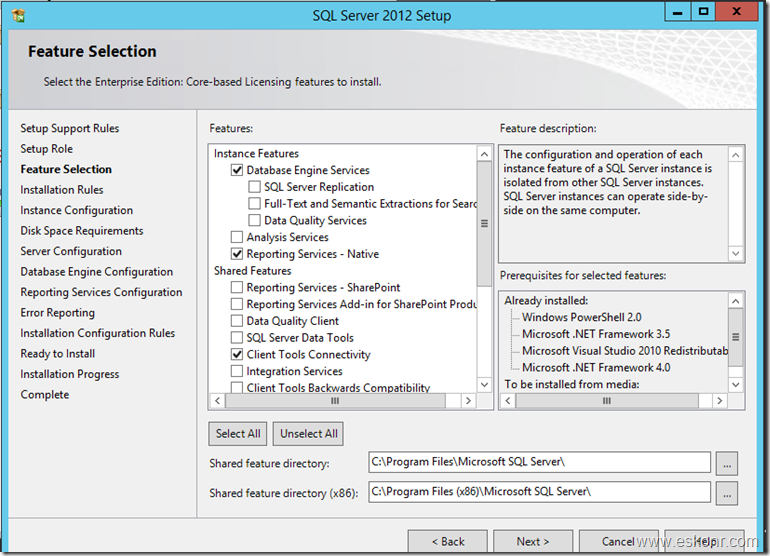

    Feature Selection

    • Database Engine
    • Reporting Services
    • Client Tools Connectivity
    • Management Tools – Complete

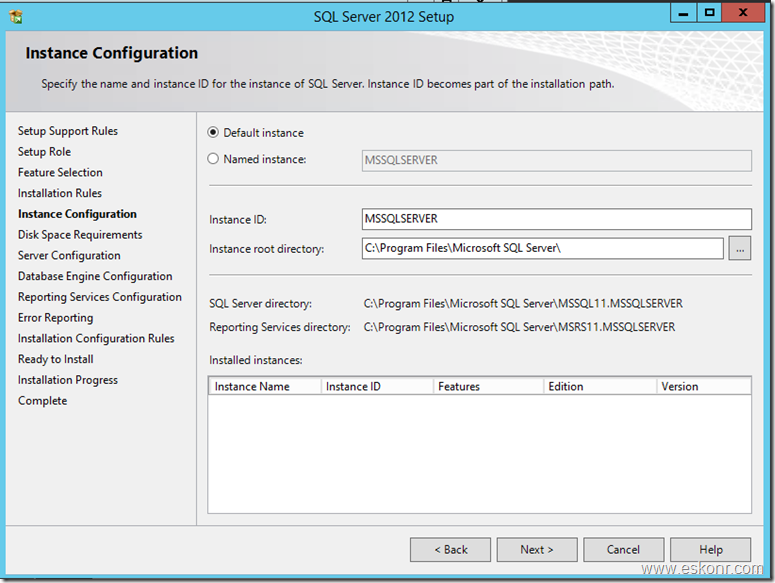

    Instance:

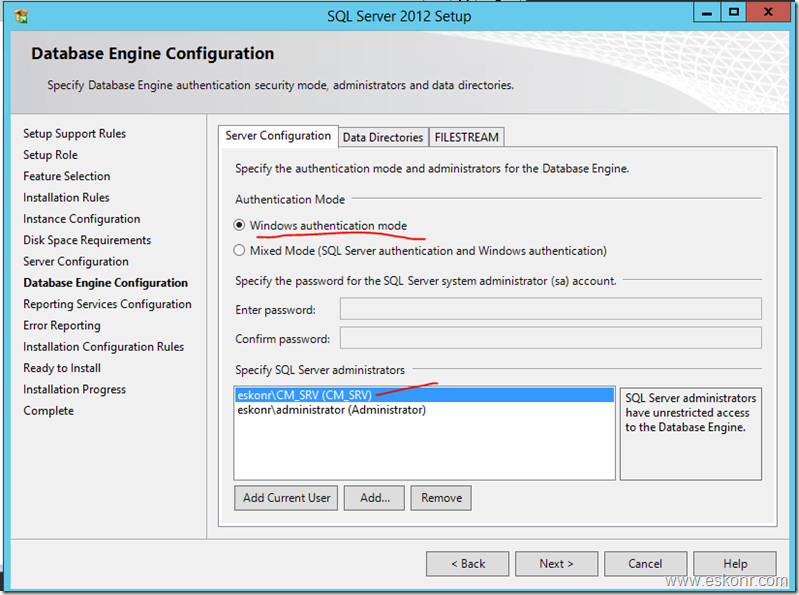

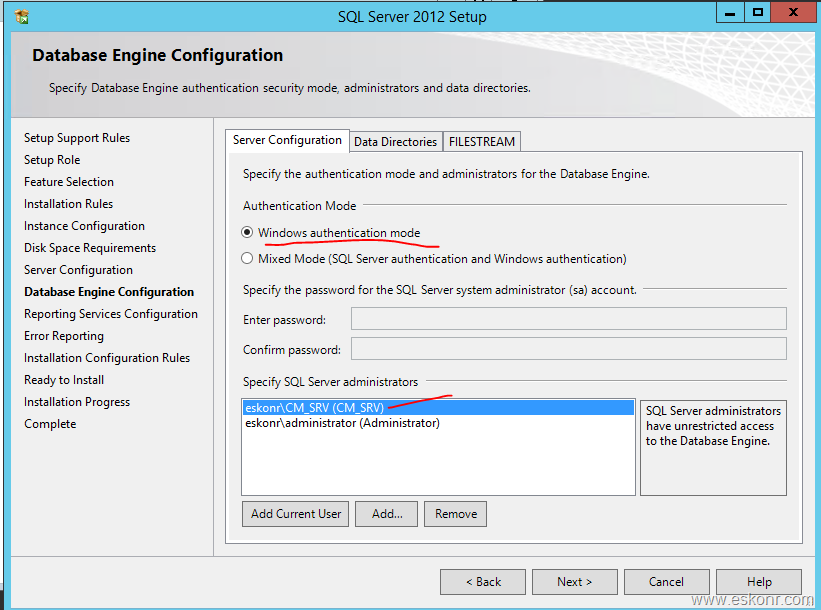

    Database locations:



    Next ,we will have to enable named pipes and TCP IP in SQL server configuration manager.


    After this ,Open services.msc (you can type this from RUN command ) and change the SQL server service log on to Local System account from its properties instead of NT service account. Domain account would be recommended but in lab,I go with Local system account.


    Restart the SQL Agent service.

    we will now try to configure the Permissions for the user account who do the installation of MBAM Database and reporting roles on this Database instead of using full administrator account.

    Open the SQL server management Studio

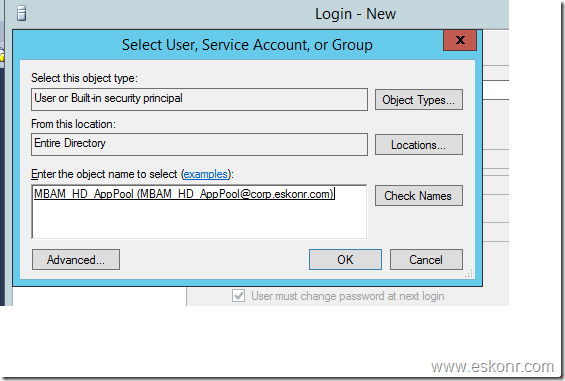

    select the user account (MBAM_hd_apppool):

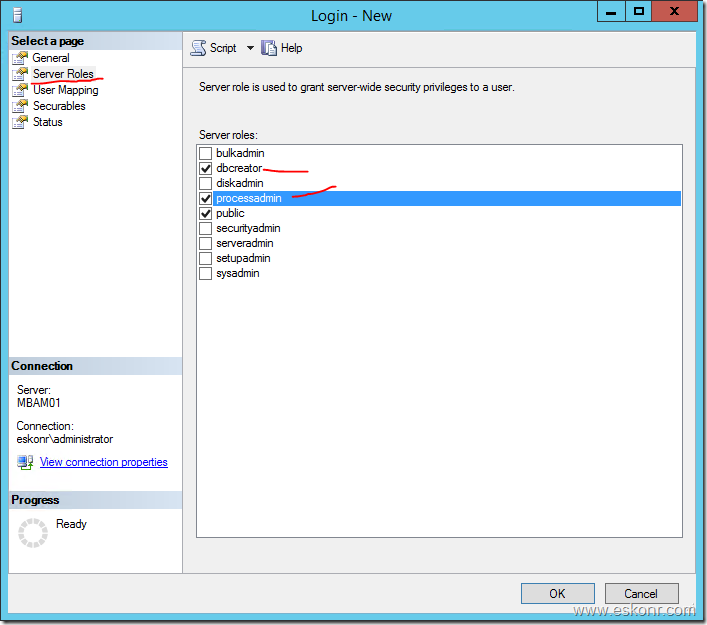

    click on serve roles


    Also configure the Rights for user Account/Group (MBAM_HD_Reports) who create and publish report to SQL Server Reporting Services:

    • Create Folders
    • Publish Reports

    Run Internet Explorer as administrator and browse http://mbam01/Reports/Pages/Folder.aspx (change the server name)

    Click on Folder settings

    image                  image

    Type MBAM_HD_Reports

    image                      image

    With this,we completed the Prerequisites for windows roles/Features and SQL server database.

    In the next part (part 3),we will look at the prerequisites for the Configuration Manager Integration feature with MBAM.
