How Can I Install SCCM 2012 SP1 Beta CAS+Primary with SQL server 2008 R2-Part 2



In My Previous Post, http://eskonr.com/2012/09/how-can-i-install-sccm-configmgr-2012-sp1-beta-cas-primary-site/ We saw how to install SQL server 2008 R2 SP1 with CU6 and some configurations.

In This post,Will go through the installation of CAS and Primary Site.

I will start with the installation of .Network Framework 4.0 and it requires Restart of your Server.

If you see error error code 0Xc80000222 with .net framework, refer http://eskonr.com/2012/09/net-framework-4-0-failed-with-error-code-0xc8000222-for-sccm-2012/

Next  Extending Schema to publish Attributes to Active Directory(Ensure you are schema Admin) and this is once Time Activity which can not be reverted back.

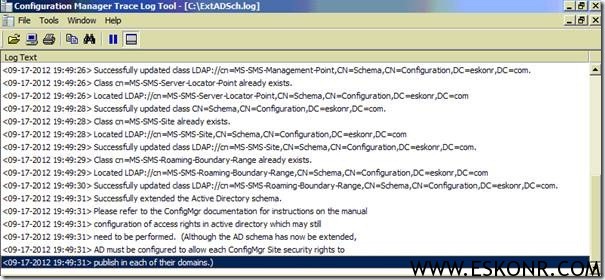

Extend the schema from smssetup/bin/X64\extadsch.exe . Look at the log file from c:\Extadsch.log for any errors.

clip_image002

Download ADK setup file as SCCM 2012 SP1 Beta requires some of the components from ADK(Assessment and Deployment Kit) from http://www.microsoft.com/en-us/download/details.aspx?id=30652

You would require only Few Components  like Windows Deployment Tools, WinPE,USMT.

Now we are almost done with all the Prerequisites which are needed go with the installation of SCCM 2012 SP1.

Run the SCCM 2012 SP1 Beta Splash.hta file.

clip_image002[1]

Click On Access Server Readiness

On the backend you will see cmd.exe running with all the checks and same will be displayed in GUI.

SCCM2012-Installation-CAS (17)

We start the installation of SCCM 2012 SP1 Beta :

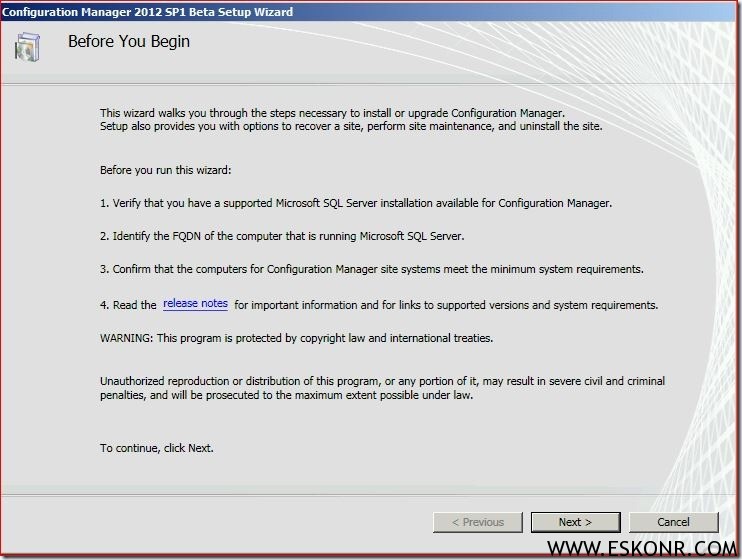

SCCM2012-Installation-CAS (1)

SCCM2012-Installation-CAS (2)

SCCM2012-Installation-CAS (3)

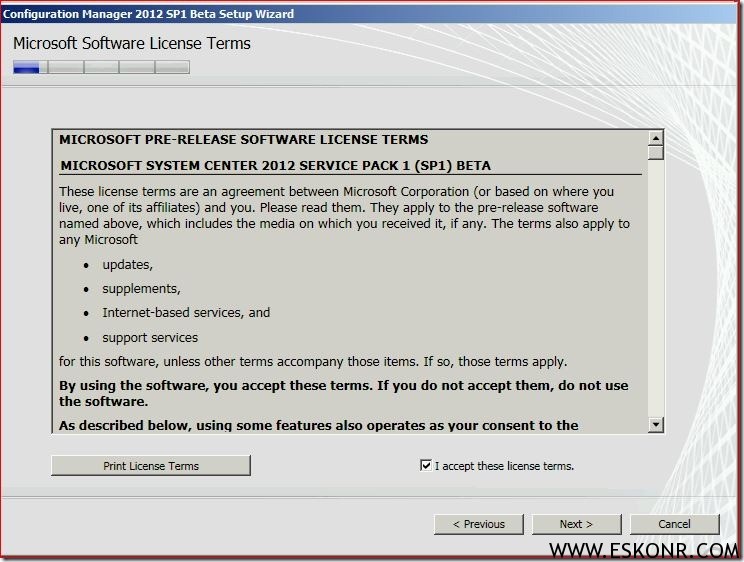

SCCM2012-Installation-CAS (4)

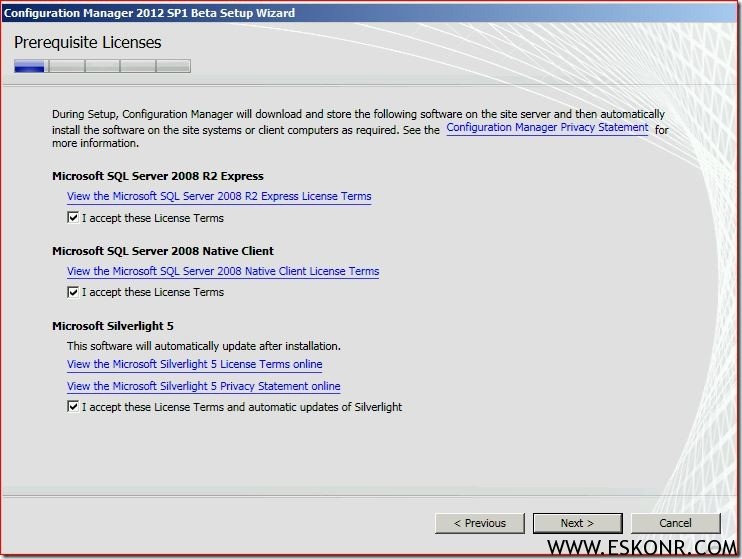

SCCM2012-Installation-CAS (5)

I already download the required setup files . If you want to download offline ,Follow the blog post http://eskonr.com/2012/01/configuration-managerconfigmgr-2012-rc2-prerequisites-download/

SCCM2012-Installation-CAS (6)

SCCM2012-Installation-CAS (7)

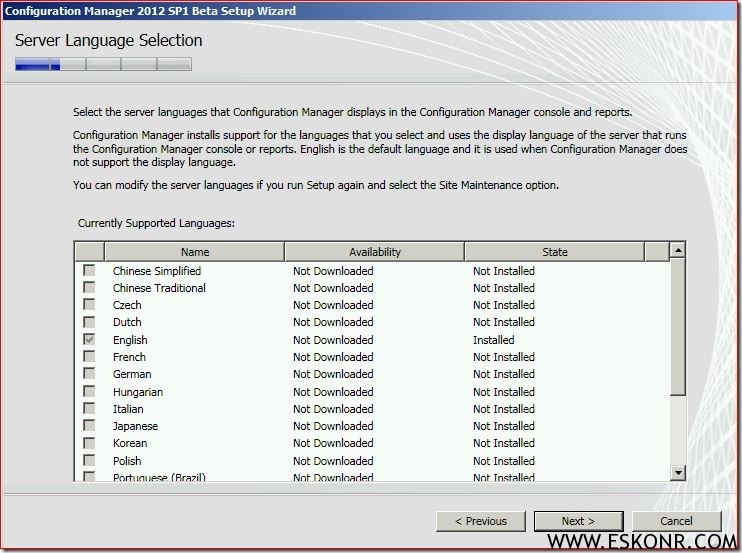

SCCM2012-Installation-CAS (8)

SCCM2012-Installation-CAS (9)

SCCM2012-Installation-CAS (10)

SCCM2012-Installation-CAS (11)



SCCM2012-Installation-CAS (12)

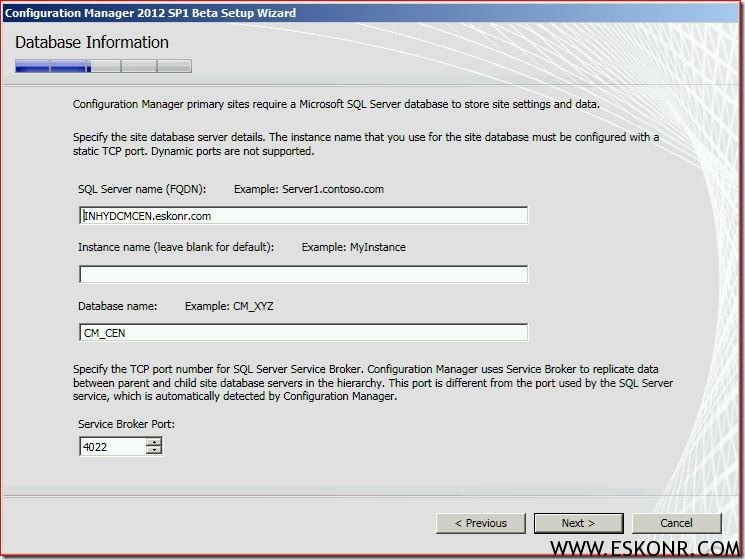

SCCM2012-Installation-CAS (13)

SCCM2012-Installation-CAS (14)

SCCM2012-Installation-CAS (15)

SCCM2012-Installation-CAS (16)

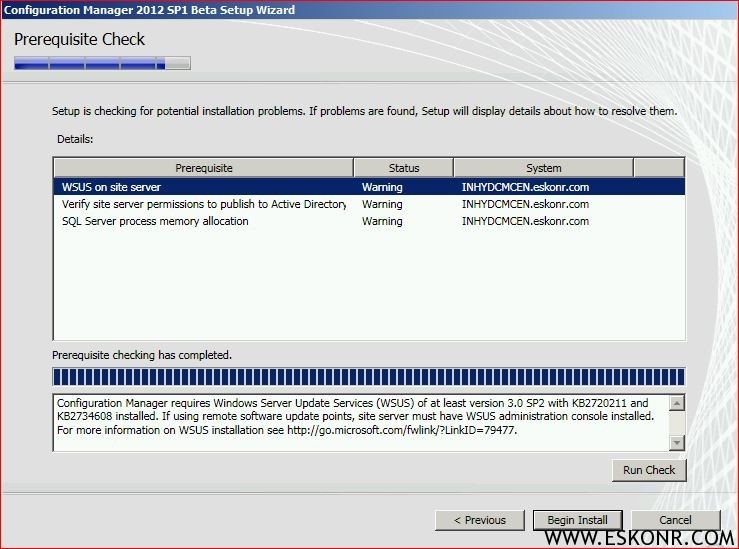

SCCM2012-Installation-CAS (17)



SCCM2012-Installation-CAS (18)

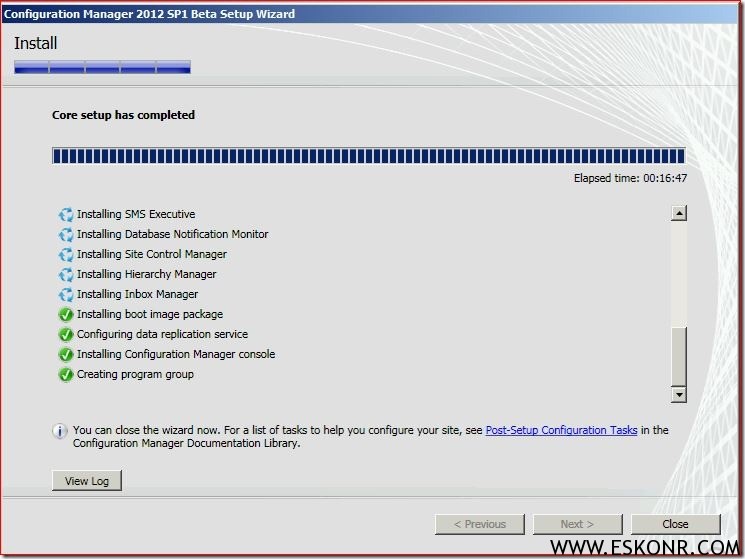

SCCM2012-Installation-CAS (19)

Here we go with Console of SCCM 2012 SP1 Beta Central Administration.

SCCM2012-Installation-CAS (20)

In Next Series we will look at Installation of Configuration Manager Primary Site (P01) child to CAS Site.
