SCCM Configmgr 2012 R2 Collections to Upgrade Clients to CU2 Version

few weeks Ago, Microsoft released Cumulative Update 2 (kb2970177) for Configuration manager 2012 R2 which supersedes previously released cumulative Update (1).

This update fixes several issues ,supports to new platform for Unix/Linux and brings changes to Configmgr powershell cmd-lets as well.

Download the Cumulative Update 2 from http://support.microsoft.com/kb/2970177

Description of Windows PowerShell changes in CU2 http://support.microsoft.com/kb/2962855

About Cumulative Update documentation,refer http://technet.microsoft.com/en-us/library/jj553405.aspx

The installation procedure is straight forward.You can refer my previous blog post ,where i showed how to Install Configmgr 2012 R2 CU1 http://eskonr.com/2014/03/how-to-install-configmgr-2012-r2-cu1-part-1/.

In this post,I will show you how to create collections to bring the configmgr clients which are not with R2 CU2 .This will help you to target CU2 to these lower Version clients.

Note: If you have not installed CU1 yet on top of Configmgr 2012 R2,you can directly go with CU2 and it doesn't require any restart.

After you install R2 CU2 hotfix ,you will see folder kb2970177 from your Configmgr Installation Drive:\Configmgr folder\hotfix (for Ex:F:\SCCM\hotfix)

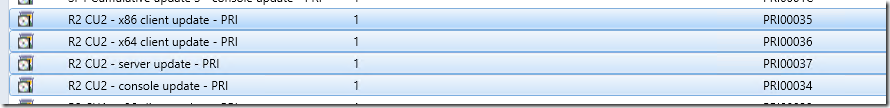

Packages in Configmgr Console:


It Contains updates to Admin Console,Client (X86 and X64),SCUP,Server (Includes Primary and Secondary Sites).

Lets start creating collections for all above:

Collection for R2 CU2-Site server:

After you install CU2 update,it will only write information to registry with CU level (HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\SMS\Setup ) and no into add and remove programs.so it would be difficult to create collection for sites that are not running on CU2 until unless you use regkey2mof to pull this via hardware inventory.

So it would be good to create collection for site server (secondary's) manually using direct membership or using the query below but you need to exclude Primary site manually in Query based.

select SMS_R_System.ResourceId, SMS_R_System.ResourceType, SMS_R_System.Name, SMS_R_System.SMSUniqueIdentifier, SMS_R_System.ResourceDomainORWorkgroup, SMS_R_System.Client from  SMS_R_System where SMS_R_System.SystemRoles = "SMS Site Server"



Collection for R2 CU2-Console:

Again,for Console,you will get list of all Computers with configmgr 2012 console installed whether they are running on R2 CU2 or not .

select SMS_R_System.ResourceId, SMS_R_System.ResourceType, SMS_R_System.Name, SMS_R_System.SMSUniqueIdentifier, SMS_R_System.ResourceDomainORWorkgroup, SMS_R_System.Client from  SMS_R_System inner join SMS_G_System_ADD_REMOVE_PROGRAMS on SMS_G_System_ADD_REMOVE_PROGRAMS.ResourceID = SMS_R_System.ResourceId where SMS_G_System_ADD_REMOVE_PROGRAMS.DisplayName = "System Center 2012 R2 Configuration Manager Console"



Collection for R2 CU2 X86:

This will list all configmgr Clients with criteria : should include X86,Client=1,Client <CU2 (5.00.7958.1303) and client version >= R2( 5.00.7958.1000).

select SMS_R_SYSTEM.ResourceID,SMS_R_SYSTEM.ResourceType,SMS_R_SYSTEM.Name,SMS_R_SYSTEM.SMSUniqueIdentifier,SMS_R_SYSTEM.ResourceDomainORWorkgroup,SMS_R_SYSTEM.Client from SMS_R_System inner join SMS_G_System_SYSTEM on SMS_G_System_SYSTEM.ResourceId = SMS_R_System.ResourceId where SMS_R_System.Active = "1" and SMS_G_System_SYSTEM.SystemType = "X86-based PC" and SMS_R_System.ClientVersion < "5.00.7958.1303" and SMS_R_System.ClientVersion >= "5.00.7958.1000"



Collection for R2 CU2 X64:

This will list all configmgr Clients with criteria : should include X64,Client=1,Client <CU2 (5.00.7958.1303) and client version >= R2( 5.00.7958.1000).

select SMS_R_SYSTEM.ResourceID,SMS_R_SYSTEM.ResourceType,SMS_R_SYSTEM.Name,SMS_R_SYSTEM.SMSUniqueIdentifier,SMS_R_SYSTEM.ResourceDomainORWorkgroup,SMS_R_SYSTEM.Client from SMS_R_System inner join SMS_G_System_SYSTEM on SMS_G_System_SYSTEM.ResourceID = SMS_R_System.ResourceId where SMS_R_System.Active = "1" and SMS_G_System_SYSTEM.SystemType = "X64-based PC" and SMS_R_System.ClientVersion < "5.00.7958.1303" and SMS_R_System.ClientVersion >= "5.00.7958.1000"



Now you have 4 packages and 4 collections .Deploy the CU2 package to respective Collection to have them on CU2 level.

Monitor the report to know the Deployment status .

8 Responses to "SCCM Configmgr 2012 R2 Collections to Upgrade Clients to CU2 Version"

  1. I have database installed in a different machines and 2 more MP's. Do i need to push the "R2-CU2 Server Update" package as well on the database and MP's, after the installation of CU2 on my primary site server?

    Reply
    1. If you are running the SMS provider on the same server,then you dont need to install the CU2 on other server that has database but if you have designated remote server as SMS provider,then you should. and on MP's,you dont need to install CU.
      You can try installing the CU2 on DB server,am sure it will tell you,it is not supported to install.

      Reply
  2. I have database installed in a different machines and 2 more MP's. Do i need to push the "R2-CU2 Server Update" package as well post the installation of CU2 on my primary site server?

    Reply
  3. we just upgraded from 2012 SP1 to 2012 R2 and ready to install CU2 just question our clients are 2012 SP1 (5.00.7804.1000) could I upgrade clients directly to CU2 or first 2012 R2 (5.00.7958.1000)and then to CU2 ?

    Reply
    1. You need to have clients running on R2 before upgrading to CU2. You can not directly install CU2 patch on SP1 clients.If at all you try to install,it will fail .

      Reply
  4. Does this hotfix have to be installed on the regular DPs? I have installed it on my secondary sites but didnt know if i had to install on my remote DPs. thanks

    Reply
    1. nope,not required.By chance,if you try to install this,it will not install .It is only required to install on CAS,primary,secondary and any additional SMS Provider servers.

      Reply
