SCCM Configmgr Manage Workgroup Computers for Deployment,Remote tools etc

In my earlier post,we saw how to manage work group computers using SCCM Configmgr 2007. http://www.windows-noob.com/forums/index.php?/topic/2029-managing-workgroup-computers-in-sccm-sms-environment/

In this blog post,we are going to see how to manage workgroup/ DMZ computers using SCCM Configmgr 2012. This procedure involves working with lmhost and host files on workgroup computers.

For some reason,i find that ,Technet documentation is not very clear on how to manage workgroup computers http://technet.microsoft.com/en-us/library/bb680962.aspx. Technet document just illustrates the overall procedure but not in detail.

Before we jump into the details of updating lmhost,other files,lets have a look at workgroup limitations,site assignment,approval etc.

There are some limitation while managing the workgroup computers listed below:

Limitations:

  • Workgroup clients cannot locate management points from AD and instead we must use DNS, WINS or another Management Point.
  • Global Roaming is not supported because clients cannot query AD for site information.
  • AD discovery cannot discover computers in workgroups.
  • You cannot deploy software to users of Workgroup computers.
  • You cannot use client push installation method to install client on workgroup computers.
  • Workgroup clients cannot use Kerberos for authentication so might require manual approval.
  • Workgroup client cannot be configured as a Distribution Point. SCCM 2012 requires that distribution point computer be members of a Domain.

 Site Assignment:

  • After you install the Client, it must join a configmgr primary site before it can be managed. The site that a client joined is referred to as its assigned site.
  • Clients cannot be assigned to CAS or secondary Site.
  • A client is considered to be unmanaged when it is installed but not assigned to a site or is assigned to a site but cannot communicate with a management Point.

Manual Vs. Auto assignment:

  • Auto assignment will not work for workgroup clients
  • To manually assign the workgroup clients SMSSITECODE installation property must be used
  • Ccmsetup.exe SMSSITECODE=PRI SMSMP=cm12pri.eskonr.com
  • Use SMSMP property to specify management point or use DNSSUFFIX for the clients to automatically locate MP from DNS.
  • Ccmsetup.exe SMSSITECODE=PRI DNSSUFFIX=eskonr.com

Client approval:

  • You can either choose to approve all automatically (not recommended) or manually approve each workgroup client from site setting properties.

Softwares/Application deployment to Workgroup clients:

  • Setup Network Access Account
  • If boundaries and boundary groups are configured properly clients can automatically locate Distribution Points.
  • If boundaries and Boundary Groups are not configured, you should setup the deployment option
  • Package properties: Deployment option: download content from DO and run locally which means all these clients will fall under SLOW.

Note : The above information is captured from Taj mohammed (Microsoft) session.

Before installing SCCM client on workgroup machines,we need to do some configurations on the workgroup/DMZ computer.

If you have managed to get workgroup computer working using SCCM 2007 ,you may find the steps more or like same in this blog post.

Do the below steps on Workgroup machine.

Disable the Firewall,If you don't want to disable,allow the required ports http://technet.microsoft.com/en-us/library/hh427328.aspx (ccmhttp and WSUS ports mainly to inbound rules)

For workgroup clients to communicate with SCCM server (MP,DP,SUP etc) ,you need to work with network team to get the required ports opened for communication between the Client and SCCM Server .

By default ,ccmhttp: 80 and WSUS port:8530 to be open from Workgroup to SCCM server (MP,DP, WSUS) ,if you have used custom ports ,get them opened .(do telnet servername port to test if they are working).

Login to the DMZ/workgroup computer ,perform the following steps.

Go to the control Panel-->Network Connections-->Local Area Network
Go to Internet TCP IP Protocol .Click on Properties---> click on Advanced --->Go to DNS Tab .
add the DNS suffix of your domain as shown below.


Next to DNS tab,select WINS Tab,select ‘Enable NetBIOS Over TCP\IP (This is only applicable if you are using Static IP ) ,click Ok to save Changes. image

Open CMD as administrator ,Open Notepad and select lmhost file from C:\Windows\System32\drivers\etc

copy the below lines to the lmhost file

192.168.1.10  SGCMCEN                        #PRE
192.168.1.10 "MP_PRI         \0x1A"      #PRE



Where SGCMCEN is SCCM Primary site server name and PRI is Site code

Make sure you have 20 characters (Including blank Spaces) between the quotes .

Note:Am not adding SLP entries to lmhost file since SLP is integrated into Management Point in CM12 and later versions.




save the changes as “lmhost” with no extensions in C:\Windows\System32\drivers\etc




Note:If you have Name resolution issues,you are required to add the Management point and Distribution Point entries to host (C:\windows\system32\drivers\etc) file.The entries look like below:

10.64.152.53    sgcmcen     sgcmcen.cm12lab.com

10.64.144.146   sgcmdp1      sgcmdp1.cm12lab.com

Next ,we need to purge and preload Remote cache table. To do this, open cmd with admin rights again and run the below commands

nbtstat –R


nbtstat -c


You will see, the changes are loaded into cache.

Next is ,to have local administrator Account for remote control using SCCM 2012 .If you do not have this account,remote control will not work.

Now we are done with the required changes and we are ready to install Configmgr Client.

Copy the sccm client installation files to local drive to workGroup machine (C:\client).

Run the command prompt with local admin rights .

use the below command to install sccm client on your workgroup computer.

ccmsetup.exe /source:C:\client SMSSITECODE=PRI SMSMP=sgcmcen.cm12lab.com DNSSUFFIX=cm12lab.com

monitor ccmsetup.log from C:\Windows\ccmsetup\Logs ,after couple of minutes,should see that ,CcmSetup is exiting with return code 0


After the installation is successful (C:\windows\ccmsetup\logs\ccmsetup.log), look for “C:\Windows\CCM\Logs\ClientIDManagerStartup.log”,if the client is registered successfully or not with Management point.If the registration is not done, client will not go further to get policies and it requires troubleshooting.

you should see something like below if the client is registered successfully.

[RegTask] - Client is registered. Server assigned ClientID is GUID:154B113F-DCDB-4327-B245-52CEA8A69036. Approval status 0

Simultaneously ,you can also look at Site server MP logs for the client registration successful or not for troubleshooting purpose. The log to look at is:<Drive Letter>:\SMS_CCM\Logs\MP_RegistrationManager.log

Now ,lets have look at configuration manager applet from control panel


go to Site tab and try to discover the site to see if it work or not


look at Actions Tab if all the agents are loaded or not


from the above screen,there are just only 2 actions loaded and this is because ,client is not approved in SCCM yet. (By default ,the site is set to approve clients in trusted domain)

After the client is registered ,you need to go to your Configuration manager console ,Devices ,look for the Client entry ,right click on the client and select Approve. This will help client to get through the policies from Configmgr and able to manage the client for deployment stuff.


Right click on the computer and approve.

Go back to the client,see if you see more than 2 actions or not.


If you have issues appearing the client in console,you will have to check clientIDmanagerStartup.logclientlocation.log and locationservices.log as part of troubleshooting.

so far ,we have seen how to edit the lmhost file ,install the SCCM client and approve the client for client to be able to communicate with Management Point.

Now we will see if Application Deployment,Remote Tools and Other functions work or not.

Try to create simple application or if you already have any ,Deploy it to workgroup computer.

Note: Make sure you configured Network Access Account to access resources from domain for the workgroup computer.

I deployed 7zip application and it appears in software center.


run the installation


You see it is successfully ran.


same way,you can also deploy software updates,packages and what else you can,Do it.

What next ,Remote Control ?

For this to happen,you need to add the workgroup IP address,hostname in your sccm server host file(C:\windows\system32\drivers\etc\hosts)

After you do this,try to do remote control of the Workgroup computer from sccm console,you get prompt for authentication since domain cred wont work.

workgroup hostname\administrator and password.

Note:if your local administrator account is disabled for other reasons,use the account which as local admin rights on the workgroup computer.image

Note: By Default ,windows 7 and later Operating Systems,GPO setting set to Classic-Local Users Authenticate themselves.

Computer Configuration\Windows Settings\Security Settings\Local Policies\Security Options-->Network access: Sharing and security model for local accounts

On the workgroup computer,you see something like this ,you can change the settings to not ask user permission in client agent settings.

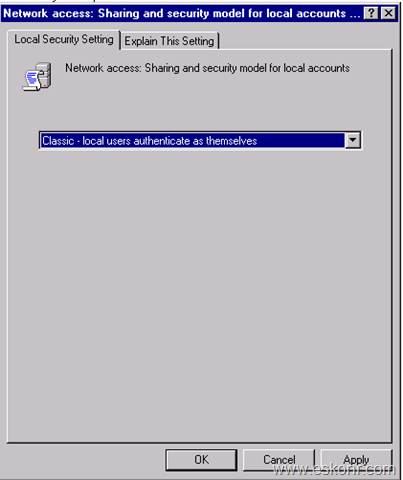

Update: If you are trying to manage Windows XP Workgroup computers,GPO setting is not set to classic by Default and it is required to change it manually or via scripting else you keep on prompting for password that never works.

image Thanks to Niall for finding the GPO setting on WinXP computers.

Hope it helps!
